Kube-Scheduler

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

type Scheduler struct {
  SchedulerCache internalcache.Cache
  Algorithm core.ScheduleAlgorithm
  GetBinder func(pod *v1.Pod) factory.Binder
  PodConditionUpdater factory.PodConditionUpdater
  PodPreemptor factory.PodPreemptor
  Framework framework.Framework
  NextPod func() *v1.Pod
  WaitForCacheSync func() bool
  Error func(*v1.Pod, error)
  Recorder events.EventRecorder
  StopEverything <-chan struct{}
  VolumeBinder *volumebinder.VolumeBinder
  DisablePreemption bool
  SchedulingQueue internalqueue.SchedulingQueue
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

	return &Config{
		SchedulerCache:      c.schedulerCache,
		Algorithm:           algo,
		GetBinder:           getBinderFunc(c.client, extenders),
		PodConditionUpdater: &podConditionUpdater{c.client},
		PodPreemptor:        &podPreemptor{c.client},
		Framework:           c.framework,
		WaitForCacheSync: func() bool {
			return cache.WaitForCacheSync(c.StopEverything, c.scheduledPodsHasSynced)
		},
		NextPod:         internalqueue.MakeNextPodFunc(c.podQueue),
		Error:           MakeDefaultErrorFunc(c.client, c.podQueue, c.schedulerCache, c.StopEverything),
		StopEverything:  c.StopEverything,
		VolumeBinder:    c.volumeBinder,
		SchedulingQueue: c.podQueue,
	}, nil

1
2
3
4
5
6
7

func (sched *Scheduler) schedule(pod *v1.Pod, pluginContext *framework.PluginContext) (core.ScheduleResult, error)
func (sched *Scheduler) preempt(pluginContext *framework.PluginContext, fwk framework.Framework, preemptor *v1.Pod, scheduleErr error) (string, error)
func (sched *Scheduler) assumeVolumes(assumed *v1.Pod, host string) (allBound bool, err error)
func (sched *Scheduler) bindVolumes(assumed *v1.Pod) error
func (sched *Scheduler) assume(assumed *v1.Pod, host string) error
func (sched *Scheduler) bind(assumed *v1.Pod, targetNode string, pluginContext *framework.PluginContext) error
func (sched *Scheduler) recordSchedulingFailure(pod *v1.Pod, err error, reason string, message string)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

	// Create the scheduler.
	sched, err := scheduler.New(cc.Client,
		cc.InformerFactory.Core().V1().Nodes(),
		cc.PodInformer,
		cc.InformerFactory.Core().V1().PersistentVolumes(),
		cc.InformerFactory.Core().V1().PersistentVolumeClaims(),
		cc.InformerFactory.Core().V1().ReplicationControllers(),
		cc.InformerFactory.Apps().V1().ReplicaSets(),
		cc.InformerFactory.Apps().V1().StatefulSets(),
		cc.InformerFactory.Core().V1().Services(),
		cc.InformerFactory.Policy().V1beta1().PodDisruptionBudgets(),
		cc.InformerFactory.Storage().V1().StorageClasses(),
		cc.InformerFactory.Storage().V1beta1().CSINodes(),
		cc.Recorder,
		cc.ComponentConfig.AlgorithmSource,
		stopCh,
		registry,
		cc.ComponentConfig.Plugins,
		cc.ComponentConfig.PluginConfig,
		scheduler.WithName(cc.ComponentConfig.SchedulerName),
		scheduler.WithHardPodAffinitySymmetricWeight(cc.ComponentConfig.HardPodAffinitySymmetricWeight),
		scheduler.WithPreemptionDisabled(cc.ComponentConfig.DisablePreemption),
		scheduler.WithPercentageOfNodesToScore(cc.ComponentConfig.PercentageOfNodesToScore),
		scheduler.WithBindTimeoutSeconds(*cc.ComponentConfig.BindTimeoutSeconds))
	if err != nil {
		return err
	}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

// New returns a Scheduler
func New(client clientset.Interface,
	nodeInformer coreinformers.NodeInformer,
	podInformer coreinformers.PodInformer,
	pvInformer coreinformers.PersistentVolumeInformer,
	pvcInformer coreinformers.PersistentVolumeClaimInformer,
	replicationControllerInformer coreinformers.ReplicationControllerInformer,
	replicaSetInformer appsinformers.ReplicaSetInformer,
	statefulSetInformer appsinformers.StatefulSetInformer,
	serviceInformer coreinformers.ServiceInformer,
	pdbInformer policyinformers.PodDisruptionBudgetInformer,
	storageClassInformer storageinformersv1.StorageClassInformer,
	csiNodeInformer storageinformersv1beta1.CSINodeInformer,
	recorder events.EventRecorder,
	schedulerAlgorithmSource kubeschedulerconfig.SchedulerAlgorithmSource,
	stopCh <-chan struct{},
	registry framework.Registry,
	plugins *kubeschedulerconfig.Plugins,
	pluginConfig []kubeschedulerconfig.PluginConfig,
         opts ...func(o *schedulerOptions)) (*Scheduler, error) {

  	// Set up the configurator which can create schedulers from configs.
	configurator := factory.NewConfigFactory(&factory.ConfigFactoryArgs{
		Client:                         client,
		NodeInformer:                   nodeInformer,
		PodInformer:                    podInformer,
		PvInformer:                     pvInformer,
		PvcInformer:                    pvcInformer,
		ReplicationControllerInformer:  replicationControllerInformer,
		ReplicaSetInformer:             replicaSetInformer,
		StatefulSetInformer:            statefulSetInformer,
		ServiceInformer:                serviceInformer,
		PdbInformer:                    pdbInformer,
		StorageClassInformer:           storageClassInformer,
		CSINodeInformer:                csiNodeInformer,
		HardPodAffinitySymmetricWeight: options.hardPodAffinitySymmetricWeight,
		DisablePreemption:              options.disablePreemption,
		PercentageOfNodesToScore:       options.percentageOfNodesToScore,
		BindTimeoutSeconds:             options.bindTimeoutSeconds,
		Registry:                       registry,
		Plugins:                        plugins,
		PluginConfig:                   pluginConfig,
	})

  var config *factory.Config

  // 根据不同的schedulerAlgorithmSource创建不同的config
  switch {
	case source.Provider != nil:
    config = configurator.CreateFromProvider(*source.Provider)
	case source.Policy != nil:
    config = configurator.CreateFromConfig(*policy)
	default:
  }

	// Create the scheduler.
	sched := NewFromConfig(config)

  AddAllEventHandlers(sched, options.schedulerName, nodeInformer, podInformer, pvInformer, pvcInformer, serviceInformer, storageClassInformer, csiNodeInformer)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// ConfigFactoryArgs is a set arguments passed to NewConfigFactory.
type ConfigFactoryArgs struct {
	Client                         clientset.Interface
	NodeInformer                   coreinformers.NodeInformer
	PodInformer                    coreinformers.PodInformer
	PvInformer                     coreinformers.PersistentVolumeInformer
	PvcInformer                    coreinformers.PersistentVolumeClaimInformer
	ReplicationControllerInformer  coreinformers.ReplicationControllerInformer
	ReplicaSetInformer             appsinformers.ReplicaSetInformer
	StatefulSetInformer            appsinformers.StatefulSetInformer
	ServiceInformer                coreinformers.ServiceInformer
	PdbInformer                    policyinformers.PodDisruptionBudgetInformer
	StorageClassInformer           storageinformersv1.StorageClassInformer
	CSINodeInformer                storageinformersv1beta1.CSINodeInformer
	HardPodAffinitySymmetricWeight int32
	DisablePreemption              bool
	PercentageOfNodesToScore       int32
	BindTimeoutSeconds             int64
	StopCh                         <-chan struct{}
	Registry                       framework.Registry
	Plugins                        *config.Plugins
	PluginConfig                   []config.PluginConfig
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77

// CreateFromConfig creates a scheduler from the configuration file
func (c *Configurator) CreateFromConfig(policy schedulerapi.Policy) (*Config, error) {
	klog.V(2).Infof("Creating scheduler from configuration: %v", policy)

	// validate the policy configuration
	if err := validation.ValidatePolicy(policy); err != nil {
		return nil, err
	}

	predicateKeys := sets.NewString()
	if policy.Predicates == nil {
		klog.V(2).Infof("Using predicates from algorithm provider '%v'", DefaultProvider)
		provider, err := GetAlgorithmProvider(DefaultProvider)
		if err != nil {
			return nil, err
		}
		predicateKeys = provider.FitPredicateKeys
	} else {
		for _, predicate := range policy.Predicates {
			klog.V(2).Infof("Registering predicate: %s", predicate.Name)
			predicateKeys.Insert(RegisterCustomFitPredicate(predicate))
		}
	}

	priorityKeys := sets.NewString()
	if policy.Priorities == nil {
		klog.V(2).Infof("Using priorities from algorithm provider '%v'", DefaultProvider)
		provider, err := GetAlgorithmProvider(DefaultProvider)
		if err != nil {
			return nil, err
		}
		priorityKeys = provider.PriorityFunctionKeys
	} else {
		for _, priority := range policy.Priorities {
			klog.V(2).Infof("Registering priority: %s", priority.Name)
			priorityKeys.Insert(RegisterCustomPriorityFunction(priority))
		}
	}

	var extenders []algorithm.SchedulerExtender
	if len(policy.ExtenderConfigs) != 0 {
		ignoredExtendedResources := sets.NewString()
		var ignorableExtenders []algorithm.SchedulerExtender
		for ii := range policy.ExtenderConfigs {
			klog.V(2).Infof("Creating extender with config %+v", policy.ExtenderConfigs[ii])
			extender, err := core.NewHTTPExtender(&policy.ExtenderConfigs[ii])
			if err != nil {
				return nil, err
			}
			if !extender.IsIgnorable() {
				extenders = append(extenders, extender)
			} else {
				ignorableExtenders = append(ignorableExtenders, extender)
			}
			for _, r := range policy.ExtenderConfigs[ii].ManagedResources {
				if r.IgnoredByScheduler {
					ignoredExtendedResources.Insert(string(r.Name))
				}
			}
		}
		// place ignorable extenders to the tail of extenders
		extenders = append(extenders, ignorableExtenders...)
		predicates.RegisterPredicateMetadataProducerWithExtendedResourceOptions(ignoredExtendedResources)
	}
	// Providing HardPodAffinitySymmetricWeight in the policy config is the new and preferred way of providing the value.
	// Give it higher precedence than scheduler CLI configuration when it is provided.
	if policy.HardPodAffinitySymmetricWeight != 0 {
		c.hardPodAffinitySymmetricWeight = policy.HardPodAffinitySymmetricWeight
	}
	// When AlwaysCheckAllPredicates is set to true, scheduler checks all the configured
	// predicates even after one or more of them fails.
	if policy.AlwaysCheckAllPredicates {
		c.alwaysCheckAllPredicates = policy.AlwaysCheckAllPredicates
	}

	return c.CreateFromKeys(predicateKeys, priorityKeys, extenders)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

// CreateFromKeys creates a scheduler from a set of registered fit predicate keys and priority keys.
func (c *Configurator) CreateFromKeys(predicateKeys, priorityKeys sets.String, extenders []algorithm.SchedulerExtender) (*Config, error) {
	klog.V(2).Infof("Creating scheduler with fit predicates '%v' and priority functions '%v'", predicateKeys, priorityKeys)

	if c.GetHardPodAffinitySymmetricWeight() < 1 || c.GetHardPodAffinitySymmetricWeight() > 100 {
		return nil, fmt.Errorf("invalid hardPodAffinitySymmetricWeight: %d, must be in the range 1-100", c.GetHardPodAffinitySymmetricWeight())
	}

	predicateFuncs, err := c.GetPredicates(predicateKeys)
	if err != nil {
		return nil, err
	}

	priorityConfigs, err := c.getPriorityFunctionConfigs(priorityKeys)
	if err != nil {
		return nil, err
	}

	priorityMetaProducer, err := c.getPriorityMetadataProducer()
	if err != nil {
		return nil, err
	}

	predicateMetaProducer, err := c.GetPredicateMetadataProducer()
	if err != nil {
		return nil, err
	}

	algo := core.NewGenericScheduler(
		c.schedulerCache,
		c.podQueue,
		predicateFuncs,
		predicateMetaProducer,
		priorityConfigs,
		priorityMetaProducer,
		c.framework,
		extenders,
		c.volumeBinder,
		c.pVCLister,
		c.pdbLister,
		c.alwaysCheckAllPredicates,
		c.disablePreemption,
		c.percentageOfNodesToScore,
		c.enableNonPreempting,
	)

	return &Config{
		SchedulerCache:      c.schedulerCache,
		Algorithm:           algo,
		GetBinder:           getBinderFunc(c.client, extenders),
		PodConditionUpdater: &podConditionUpdater{c.client},
		PodPreemptor:        &podPreemptor{c.client},
		Framework:           c.framework,
		WaitForCacheSync: func() bool {
			return cache.WaitForCacheSync(c.StopEverything, c.scheduledPodsHasSynced)
		},
		NextPod:         internalqueue.MakeNextPodFunc(c.podQueue),
		Error:           MakeDefaultErrorFunc(c.client, c.podQueue, c.schedulerCache, c.StopEverything),
		StopEverything:  c.StopEverything,
		VolumeBinder:    c.volumeBinder,
		SchedulingQueue: c.podQueue,
	}, nil
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

// AddAllEventHandlers is a helper function used in tests and in Scheduler
// to add event handlers for various informers.
func AddAllEventHandlers(
	sched *Scheduler,
	schedulerName string,
	nodeInformer coreinformers.NodeInformer,
	podInformer coreinformers.PodInformer,
	pvInformer coreinformers.PersistentVolumeInformer,
	pvcInformer coreinformers.PersistentVolumeClaimInformer,
	serviceInformer coreinformers.ServiceInformer,
	storageClassInformer storageinformersv1.StorageClassInformer,
	csiNodeInformer storageinformersv1beta1.CSINodeInformer,
) {}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

func (p *PriorityQueue) MoveAllToActiveQueue() {
	p.lock.Lock()
	defer p.lock.Unlock()

	// There is a chance of errors when adding pods to other queues,
	// we make a temporary slice to store the pods,
	// since the probability is low, we set its len to 0
	addErrorPods := make([]*framework.PodInfo, 0)

	for _, pInfo := range p.unschedulableQ.podInfoMap {
		pod := pInfo.Pod
		if p.isPodBackingOff(pod) {
			if err := p.podBackoffQ.Add(pInfo); err != nil {
				klog.Errorf("Error adding pod %v to the backoff queue: %v", pod.Name, err)
				addErrorPods = append(addErrorPods, pInfo)
			}
		} else {
			if err := p.activeQ.Add(pInfo); err != nil {
				klog.Errorf("Error adding pod %v to the scheduling queue: %v", pod.Name, err)
				addErrorPods = append(addErrorPods, pInfo)
			}
		}
	}
	p.unschedulableQ.clear()
	// Adding pods that we could not move to Active queue or Backoff queue back to the Unschedulable queue
	for _, podInfo := range addErrorPods {
		p.unschedulableQ.addOrUpdate(podInfo)
	}
	p.moveRequestCycle = p.schedulingCycle
	p.cond.Broadcast()
}

1
2
3
4
5
6
7

func (sched *Scheduler) Run() {
	if !sched.WaitForCacheSync() {
		return
	}

	go wait.Until(sched.scheduleOne, 0, sched.StopEverything)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

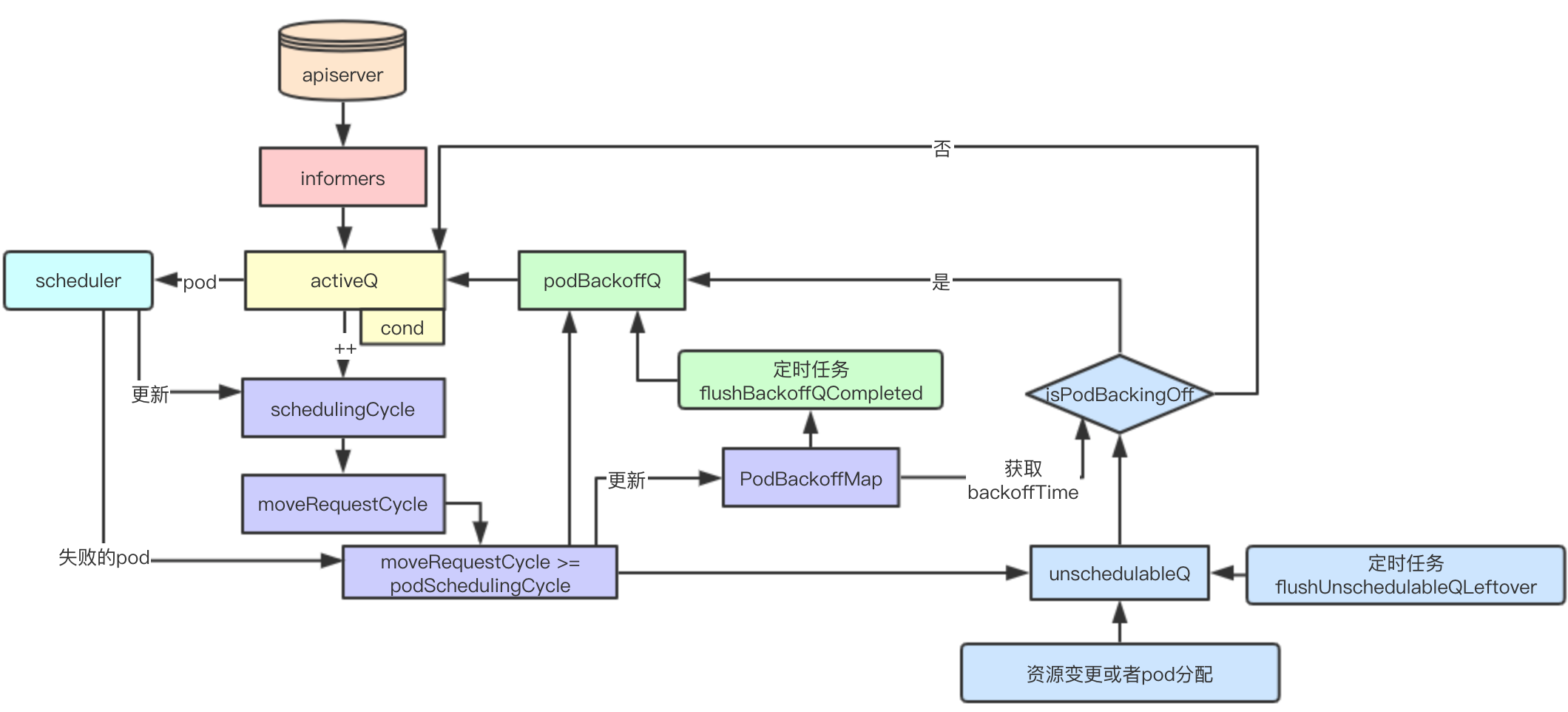

type SchedulingQueue interface {
	Add(pod *v1.Pod) error
	AddIfNotPresent(pod *v1.Pod) error
	AddUnschedulableIfNotPresent(pod *v1.Pod, podSchedulingCycle int64) error
	SchedulingCycle() int64
	Pop() (*v1.Pod, error)
	Update(oldPod, newPod *v1.Pod) error
	Delete(pod *v1.Pod) error
	MoveAllToActiveQueue()
	AssignedPodAdded(pod *v1.Pod)
	AssignedPodUpdated(pod *v1.Pod)
	NominatedPodsForNode(nodeName string) []*v1.Pod
	PendingPods() []*v1.Pod
	Close()
	UpdateNominatedPodForNode(pod *v1.Pod, nodeName string)
	DeleteNominatedPodIfExists(pod *v1.Pod)
	NumUnschedulablePods() int
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

type PriorityQueue struct {
	stop  <-chan struct{}
	clock util.Clock
	podBackoff *PodBackoffMap

	lock sync.RWMutex
	cond sync.Cond

  activeQ *util.Heap
	podBackoffQ *util.Heap
	unschedulableQ *UnschedulablePodsMap
	nominatedPods *nominatedPodMap
	schedulingCycle int64
	moveRequestCycle int64
	closed bool
}

1
2
3
4

func (p *PriorityQueue) run() {
    go wait.Until(p.flushBackoffQCompleted, 1.0*time.Second, p.stop)
    go wait.Until(p.flushUnschedulableQLeftover, 30*time.Second, p.stop)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

func (p *PriorityQueue) MoveAllToActiveQueue() {
	p.lock.Lock()
	defer p.lock.Unlock()

	// There is a chance of errors when adding pods to other queues,
	// we make a temporary slice to store the pods,
	// since the probability is low, we set its len to 0
	addErrorPods := make([]*framework.PodInfo, 0)

	for _, pInfo := range p.unschedulableQ.podInfoMap {
		pod := pInfo.Pod
		if p.isPodBackingOff(pod) {
			if err := p.podBackoffQ.Add(pInfo); err != nil {
				klog.Errorf("Error adding pod %v to the backoff queue: %v", pod.Name, err)
				addErrorPods = append(addErrorPods, pInfo)
			}
		} else {
			if err := p.activeQ.Add(pInfo); err != nil {
				klog.Errorf("Error adding pod %v to the scheduling queue: %v", pod.Name, err)
				addErrorPods = append(addErrorPods, pInfo)
			}
		}
	}
	p.unschedulableQ.clear()
	// Adding pods that we could not move to Active queue or Backoff queue back to the Unschedulable queue
	for _, podInfo := range addErrorPods {
		p.unschedulableQ.addOrUpdate(podInfo)
	}
	p.moveRequestCycle = p.schedulingCycle
	p.cond.Broadcast()
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

func (p *PriorityQueue) Add(pod *v1.Pod) error {
    p.lock.Lock()
    defer p.lock.Unlock()
    pInfo := p.newPodInfo(pod)
    // 加入activeQ
    if err := p.activeQ.Add(pInfo); err != nil {
        klog.Errorf("Error adding pod %v/%v to the scheduling queue: %v", pod.Namespace, pod.Name, err)
        return err
    }
    // 从unschedulableQ删除
    if p.unschedulableQ.get(pod) != nil {
        klog.Errorf("Error: pod %v/%v is already in the unschedulable queue.", pod.Namespace, pod.Name)
        p.unschedulableQ.delete(pod)
    }
    // Delete pod from backoffQ if it is backing off
    // 从podBackoffQ删除
    if err := p.podBackoffQ.Delete(pInfo); err == nil {
        klog.Errorf("Error: pod %v/%v is already in the podBackoff queue.", pod.Namespace, pod.Name)
    }
    // 存储pod和被提名的node
    p.nominatedPods.add(pod, "")
    p.cond.Broadcast()

    return nil
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

func (sched *Scheduler) recordSchedulingFailure(pod *v1.Pod, err error, reason string, message string) {
    // 错误回调
    sched.Error(pod, err)
    sched.Recorder.Eventf(pod, nil, v1.EventTypeWarning, "FailedScheduling", "Scheduling", message)
    if err := sched.PodConditionUpdater.Update(pod, &v1.PodCondition{
        Type:    v1.PodScheduled,
        Status:  v1.ConditionFalse,
        Reason:  reason,
        Message: err.Error(),
    }); err != nil {
        klog.Errorf("Error updating the condition of the pod %s/%s: %v", pod.Namespace, pod.Name, err)
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

func(pod *v1.Pod, err error) {
    podSchedulingCycle := podQueue.SchedulingCycle()
    // 省略非核心代码
    if len(pod.Spec.NodeName) == 0 {
        //重新放回队列
        if err := podQueue.AddUnschedulableIfNotPresent(pod, podSchedulingCycle); err != nil {
            klog.Error(err)
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

func (p *PriorityQueue) AddUnschedulableIfNotPresent(pod *v1.Pod, podSchedulingCycle int64) error {
  ...
  // Every unschedulable pod is subject to backoff timers.
	p.backoffPod(pod)

	// If a move request has been received, move it to the BackoffQ, otherwise move
	// it to unschedulableQ.
	if p.moveRequestCycle >= podSchedulingCycle {
		if err := p.podBackoffQ.Add(pInfo); err != nil {
			return fmt.Errorf("error adding pod %v to the backoff queue: %v", pod.Name, err)
		}
	} else {
		p.unschedulableQ.addOrUpdate(pInfo)
	}

	p.nominatedPods.add(pod, "")
	return nil
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

func (p *PriorityQueue) flushBackoffQCompleted() {
    p.lock.Lock()
    defer p.lock.Unlock()

    for {
        // 获取堆顶元素
        rawPodInfo := p.podBackoffQ.Peek()
        if rawPodInfo == nil {
            return
        }
        pod := rawPodInfo.(*framework.PodInfo).Pod
        // 获取到期时间
        boTime, found := p.podBackoff.GetBackoffTime(nsNameForPod(pod))
        if !found {
            // 如果当前已经不在podBackoff中，则就pop出来然后放入到activeQ
            klog.Errorf("Unable to find backoff value for pod %v in backoffQ", nsNameForPod(pod))
            p.podBackoffQ.Pop()
            p.activeQ.Add(rawPodInfo)
            defer p.cond.Broadcast()
            continue
        }

        // 未超时
        if boTime.After(p.clock.Now()) {
            return
        }
        // 超时就pop出来
        _, err := p.podBackoffQ.Pop()
        if err != nil {
            klog.Errorf("Unable to pop pod %v from backoffQ despite backoff completion.", nsNameForPod(pod))
            return
        }
        // 加入到activeQ中
        p.activeQ.Add(rawPodInfo)
        defer p.cond.Broadcast()
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

func (p *PriorityQueue) flushUnschedulableQLeftover() {
    p.lock.Lock()
    defer p.lock.Unlock()

    var podsToMove []*framework.PodInfo
    currentTime := p.clock.Now()
    for _, pInfo := range p.unschedulableQ.podInfoMap {
        lastScheduleTime := pInfo.Timestamp
        // 如果该pod1分钟内没有被调度就加入到podsToMove
        if currentTime.Sub(lastScheduleTime) > unschedulableQTimeInterval {
            podsToMove = append(podsToMove, pInfo)
        }
    }

    if len(podsToMove) > 0 {
        // podsToMove将这些pod移动到activeQ
        p.movePodsToActiveQueue(podsToMove)
    }
}

1
2
3
4
5
6
7
8
9

type nominatedPodMap struct {
	// nominatedPods is a map keyed by a node name and the value is a list of
	// pods which are nominated to run on the node. These are pods which can be in
	// the activeQ or unschedulableQ.
	nominatedPods map[string][]*v1.Pod
	// nominatedPodToNode is map keyed by a Pod UID to the node name where it is
	// nominated.
	nominatedPodToNode map[ktypes.UID]string
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

// MakeNextPodFunc returns a function to retrieve the next pod from a given
// scheduling queue
func MakeNextPodFunc(queue SchedulingQueue) func() *v1.Pod {
	return func() *v1.Pod {
		pod, err := queue.Pop()
		if err == nil {
			klog.V(4).Infof("About to try and schedule pod %v/%v", pod.Namespace, pod.Name)
			return pod
		}
		klog.Errorf("Error while retrieving next pod from scheduling queue: %v", err)
		return nil
	}
}

1
2
3
4
5

type nodeInfoListItem struct {
	info *schedulernodeinfo.NodeInfo
	next *nodeInfoListItem
	prev *nodeInfoListItem
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

type NodeInfo struct {
	node *v1.Node

	pods             []*v1.Pod
	podsWithAffinity []*v1.Pod
	usedPorts        HostPortInfo

	requestedResource *Resource
	nonzeroRequest *Resource
	allocatableResource *Resource

	taints    []v1.Taint
	taintsErr error

	imageStates map[string]*ImageStateSummary

	TransientInfo *TransientSchedulerInfo

	memoryPressureCondition v1.ConditionStatus
	diskPressureCondition   v1.ConditionStatus
	pidPressureCondition    v1.ConditionStatus

	generation int64
}

1
2
3
4
5
6
7

	nodeInformer.Informer().AddEventHandler(
		cache.ResourceEventHandlerFuncs{
			AddFunc:    sched.addNodeToCache,
			UpdateFunc: sched.updateNodeInCache,
			DeleteFunc: sched.deleteNodeFromCache,
		},
	)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

func (cache *schedulerCache) AddNode(node *v1.Node) error {
	cache.mu.Lock()
	defer cache.mu.Unlock()

	n, ok := cache.nodes[node.Name]
	if !ok {
		n = newNodeInfoListItem(schedulernodeinfo.NewNodeInfo())
		cache.nodes[node.Name] = n
	} else {
		cache.removeNodeImageStates(n.info.Node())
	}
	cache.moveNodeInfoToHead(node.Name)

	cache.nodeTree.AddNode(node)
	cache.addNodeImageStates(node, n.info)
	return n.info.SetNode(node)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

type NodeTree struct {
	tree      map[string]*nodeArray // a map from zone (region-zone) to an array of nodes in the zone.
	zones     []string              // a list of all the zones in the tree (keys)
	zoneIndex int
	numNodes  int
	mu        sync.RWMutex
}

type nodeArray struct {
	nodes     []string
	lastIndex int
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

func (nt *NodeTree) Next() string {
	nt.mu.Lock()
	defer nt.mu.Unlock()
	if len(nt.zones) == 0 {
		return ""
	}
	numExhaustedZones := 0
	for {
		if nt.zoneIndex >= len(nt.zones) {
			nt.zoneIndex = 0
		}
		zone := nt.zones[nt.zoneIndex]
		nt.zoneIndex++
		// We do not check the exhausted zones before calling next() on the zone. This ensures
		// that if more nodes are added to a zone after it is exhausted, we iterate over the new nodes.
		nodeName, exhausted := nt.tree[zone].next()
		if exhausted {
			numExhaustedZones++
			if numExhaustedZones >= len(nt.zones) { // all zones are exhausted. we should reset.
				nt.resetExhausted()
			}
		} else {
			return nodeName
		}
	}
}

1
2
3
4

type Snapshot struct {
	NodeInfoMap map[string]*NodeInfo
	Generation  int64
}

1

nodeInfoSnapshot:         framework.NodeInfoSnapshot(),

1
2
3
4

func (g *genericScheduler) snapshot() error {
    // Used for all fit and priority funcs.
    return g.cache.UpdateNodeInfoSnapshot(g.nodeInfoSnapshot)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

func (cache *schedulerCache) UpdateNodeInfoSnapshot(nodeSnapshot *schedulernodeinfo.Snapshot) error {
    cache.mu.Lock()
    defer cache.mu.Unlock()
    balancedVolumesEnabled := utilfeature.DefaultFeatureGate.Enabled(features.BalanceAttachedNodeVolumes)

    // 获取当前snapshot的Genration
    snapshotGeneration := nodeSnapshot.Generation

    // 遍历双向链表，更新snapshot信息
    for node := cache.headNode; node != nil; node = node.next {
        if node.info.GetGeneration() <= snapshotGeneration {
            //所有node信息都更新完毕
            break
        }
        if balancedVolumesEnabled && node.info.TransientInfo != nil {
            // Transient scheduler info is reset here.
            node.info.TransientInfo.ResetTransientSchedulerInfo()
        }
        if np := node.info.Node(); np != nil {
            nodeSnapshot.NodeInfoMap[np.Name] = node.info.Clone()
        }
    }
    // 更新snapshot的genration
    if cache.headNode != nil {
        nodeSnapshot.Generation = cache.headNode.info.GetGeneration()
    }

    // 如果snapshot里面包含过期的pod信息则进行清理工作
    if len(nodeSnapshot.NodeInfoMap) > len(cache.nodes) {
        for name := range nodeSnapshot.NodeInfoMap {
            if _, ok := cache.nodes[name]; !ok {
                delete(nodeSnapshot.NodeInfoMap, name)
            }
        }
    }
    return nil
}

1

assumedPods map[string]bool

1
2
3

func (cache *schedulerCache) run() {
    go wait.Until(cache.cleanupExpiredAssumedPods, cache.period, cache.stop)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

// cleanupAssumedPods exists for making test deterministic by taking time as input argument.
func (cache *schedulerCache) cleanupAssumedPods(now time.Time) {
    cache.mu.Lock()
    defer cache.mu.Unlock()

    // The size of assumedPods should be small
    for key := range cache.assumedPods {
        ps, ok := cache.podStates[key]
        if !ok {
            panic("Key found in assumed set but not in podStates. Potentially a logical error.")
        }
        // 未完成绑定的pod不会被进行清理
        if !ps.bindingFinished {
            klog.V(3).Infof("Couldn't expire cache for pod %v/%v. Binding is still in progress.",
                ps.pod.Namespace, ps.pod.Name)
            continue
        }
        // 在完成bind之后会设定一个过期时间，目前是30s,如果deadline即bind时间+30s小于当前时间就过期删除
        if now.After(*ps.deadline) {
            klog.Warningf("Pod %s/%s expired", ps.pod.Namespace, ps.pod.Name)
            if err := cache.expirePod(key, ps); err != nil {
                klog.Errorf("ExpirePod failed for %s: %v", key, err)
            }
        }
    }
}

1
2
3
4
5
6
7
8

func (cache *schedulerCache) expirePod(key string, ps *podState) error {
    if err := cache.removePod(ps.pod); err != nil {
        return err
    }
    delete(cache.assumedPods, key)
    delete(cache.podStates, key)
    return nil
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108

func init() {
	// Register functions that extract metadata used by predicates computations.
	factory.RegisterPredicateMetadataProducerFactory(
		func(args factory.PluginFactoryArgs) predicates.PredicateMetadataProducer {
			return predicates.NewPredicateMetadataFactory(args.PodLister)
		})

	// IMPORTANT NOTES for predicate developers:
	// Registers predicates and priorities that are not enabled by default, but user can pick when creating their
	// own set of priorities/predicates.

	// PodFitsPorts has been replaced by PodFitsHostPorts for better user understanding.
	// For backwards compatibility with 1.0, PodFitsPorts is registered as well.
	factory.RegisterFitPredicate("PodFitsPorts", predicates.PodFitsHostPorts)
	// Fit is defined based on the absence of port conflicts.
	// This predicate is actually a default predicate, because it is invoked from
	// predicates.GeneralPredicates()
	factory.RegisterFitPredicate(predicates.PodFitsHostPortsPred, predicates.PodFitsHostPorts)
	// Fit is determined by resource availability.
	// This predicate is actually a default predicate, because it is invoked from
	// predicates.GeneralPredicates()
	factory.RegisterFitPredicate(predicates.PodFitsResourcesPred, predicates.PodFitsResources)
	// Fit is determined by the presence of the Host parameter and a string match
	// This predicate is actually a default predicate, because it is invoked from
	// predicates.GeneralPredicates()
	factory.RegisterFitPredicate(predicates.HostNamePred, predicates.PodFitsHost)
	// Fit is determined by node selector query.
	factory.RegisterFitPredicate(predicates.MatchNodeSelectorPred, predicates.PodMatchNodeSelector)

	// Fit is determined by volume zone requirements.
	factory.RegisterFitPredicateFactory(
		predicates.NoVolumeZoneConflictPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewVolumeZonePredicate(args.PVInfo, args.PVCInfo, args.StorageClassInfo)
		},
	)
	// Fit is determined by whether or not there would be too many AWS EBS volumes attached to the node
	factory.RegisterFitPredicateFactory(
		predicates.MaxEBSVolumeCountPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewMaxPDVolumeCountPredicate(predicates.EBSVolumeFilterType, args.CSINodeInfo, args.StorageClassInfo, args.PVInfo, args.PVCInfo)
		},
	)
	// Fit is determined by whether or not there would be too many GCE PD volumes attached to the node
	factory.RegisterFitPredicateFactory(
		predicates.MaxGCEPDVolumeCountPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewMaxPDVolumeCountPredicate(predicates.GCEPDVolumeFilterType, args.CSINodeInfo, args.StorageClassInfo, args.PVInfo, args.PVCInfo)
		},
	)
	// Fit is determined by whether or not there would be too many Azure Disk volumes attached to the node
	factory.RegisterFitPredicateFactory(
		predicates.MaxAzureDiskVolumeCountPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewMaxPDVolumeCountPredicate(predicates.AzureDiskVolumeFilterType, args.CSINodeInfo, args.StorageClassInfo, args.PVInfo, args.PVCInfo)
		},
	)
	factory.RegisterFitPredicateFactory(
		predicates.MaxCSIVolumeCountPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewCSIMaxVolumeLimitPredicate(args.CSINodeInfo, args.PVInfo, args.PVCInfo, args.StorageClassInfo)
		},
	)
	factory.RegisterFitPredicateFactory(
		predicates.MaxCinderVolumeCountPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewMaxPDVolumeCountPredicate(predicates.CinderVolumeFilterType, args.CSINodeInfo, args.StorageClassInfo, args.PVInfo, args.PVCInfo)
		},
	)

	// Fit is determined by inter-pod affinity.
	factory.RegisterFitPredicateFactory(
		predicates.MatchInterPodAffinityPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewPodAffinityPredicate(args.NodeInfo, args.PodLister)
		},
	)

	// Fit is determined by non-conflicting disk volumes.
	factory.RegisterFitPredicate(predicates.NoDiskConflictPred, predicates.NoDiskConflict)

	// GeneralPredicates are the predicates that are enforced by all Kubernetes components
	// (e.g. kubelet and all schedulers)
	factory.RegisterFitPredicate(predicates.GeneralPred, predicates.GeneralPredicates)

	// Fit is determined by node memory pressure condition.
	factory.RegisterFitPredicate(predicates.CheckNodeMemoryPressurePred, predicates.CheckNodeMemoryPressurePredicate)

	// Fit is determined by node disk pressure condition.
	factory.RegisterFitPredicate(predicates.CheckNodeDiskPressurePred, predicates.CheckNodeDiskPressurePredicate)

	// Fit is determined by node pid pressure condition.
	factory.RegisterFitPredicate(predicates.CheckNodePIDPressurePred, predicates.CheckNodePIDPressurePredicate)

	// Fit is determined by node conditions: not ready, network unavailable or out of disk.
	factory.RegisterMandatoryFitPredicate(predicates.CheckNodeConditionPred, predicates.CheckNodeConditionPredicate)

	// Fit is determined based on whether a pod can tolerate all of the node's taints
	factory.RegisterFitPredicate(predicates.PodToleratesNodeTaintsPred, predicates.PodToleratesNodeTaints)

	// Fit is determined by volume topology requirements.
	factory.RegisterFitPredicateFactory(
		predicates.CheckVolumeBindingPred,
		func(args factory.PluginFactoryArgs) predicates.FitPredicate {
			return predicates.NewVolumeBindingPredicate(args.VolumeBinder)
		},
	)
}

1
2
3
4

const (
	minFeasibleNodesToFind = 100
	minFeasibleNodesPercentageToFind = 5
)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

func (g *genericScheduler) numFeasibleNodesToFind(numAllNodes int32) (numNodes int32) {
    // 如果当前节点数量小于minFeasibleNodesToFind即小于100台node
    // 同理百分比如果大于100就是全量取样
    // 这两种情况都直接遍历整个集群中所有节点
    if numAllNodes < minFeasibleNodesToFind || g.percentageOfNodesToScore >= 100 {
        return numAllNodes
    }

    // schedulerapi.DefaultPercentageOfNodesToScore = 50
    adaptivePercentage := g.percentageOfNodesToScore
    if adaptivePercentage <= 0 {
        adaptivePercentage = schedulerapi.DefaultPercentageOfNodesToScore - numAllNodes/125
        if adaptivePercentage < minFeasibleNodesPercentageToFind {
            adaptivePercentage = minFeasibleNodesPercentageToFind
        }
    }

    // 正常取样计算：比如numAllNodes为5000，而adaptivePercentage为50%
    // 则numNodes=50000*0.5/100=250
    numNodes = numAllNodes * adaptivePercentage / 100
    if numNodes < minFeasibleNodesToFind { // 如果小于最少取样则按照最少取样进行取样
        return minFeasibleNodesToFind
    }

    return numNodes
}
